Functional Arrays that we always wished for
Smart Array
- Pattern-based arrays for complex layouts.
- Path-based arraying along any geometry.
- Full support for 3D Arrays in any view.
play_circle[ 16:9 Video Placeholder ]
Family or Group Arraying
Array individual loaded families or entire detail groups seamlessly without breaking their native constraints.
Granular Placement Control
Define precise spacing, parametric offset variables, and adaptive boundary-edge detection rules.
Non-Destructive Editing
Easily modify array parameters and spacing logic after placement without having to rebuild the layout from scratch.
1
Pattern-based arrays.
Move beyond simple linear arrays. Distribute your elements across complex 2D and 3D patterns with predictable spacing.

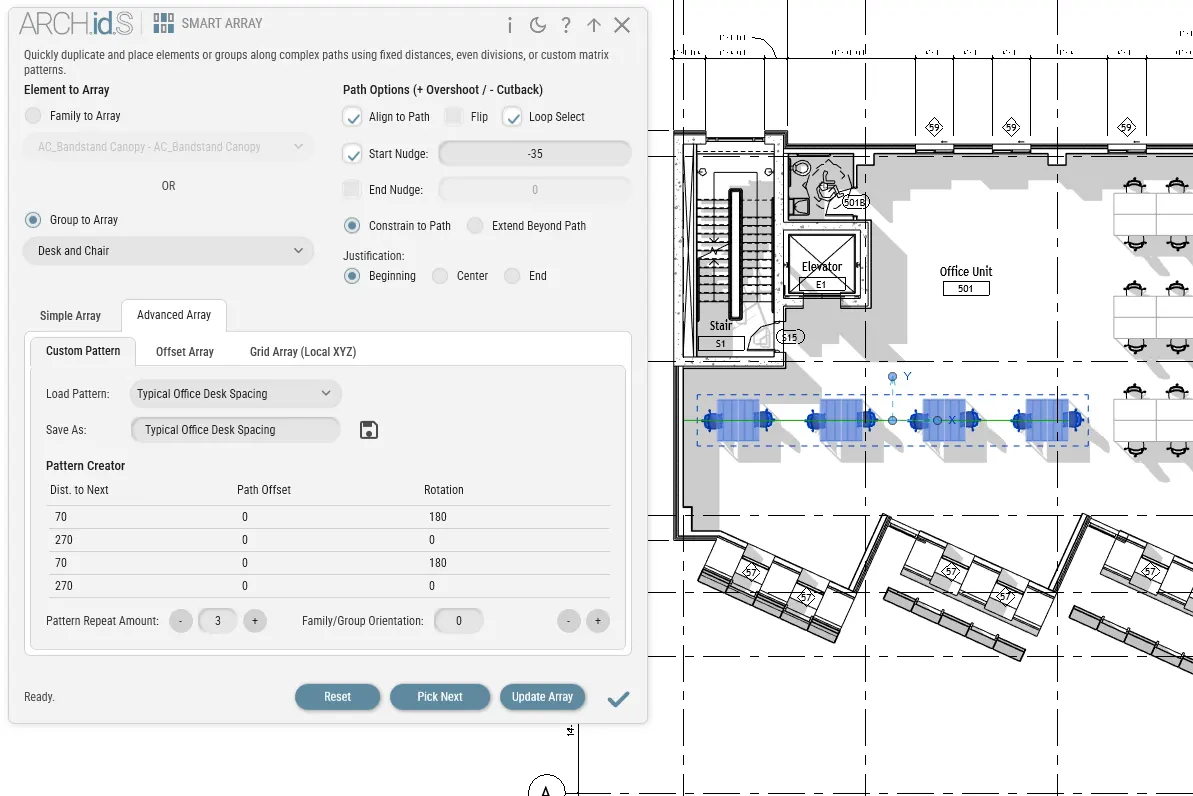

[ Screenshot: Demonstration of pattern-based array distribution ]
2
Path-based arrays.
Select any continuous path or edge in your model and accurately distribute elements along its length.

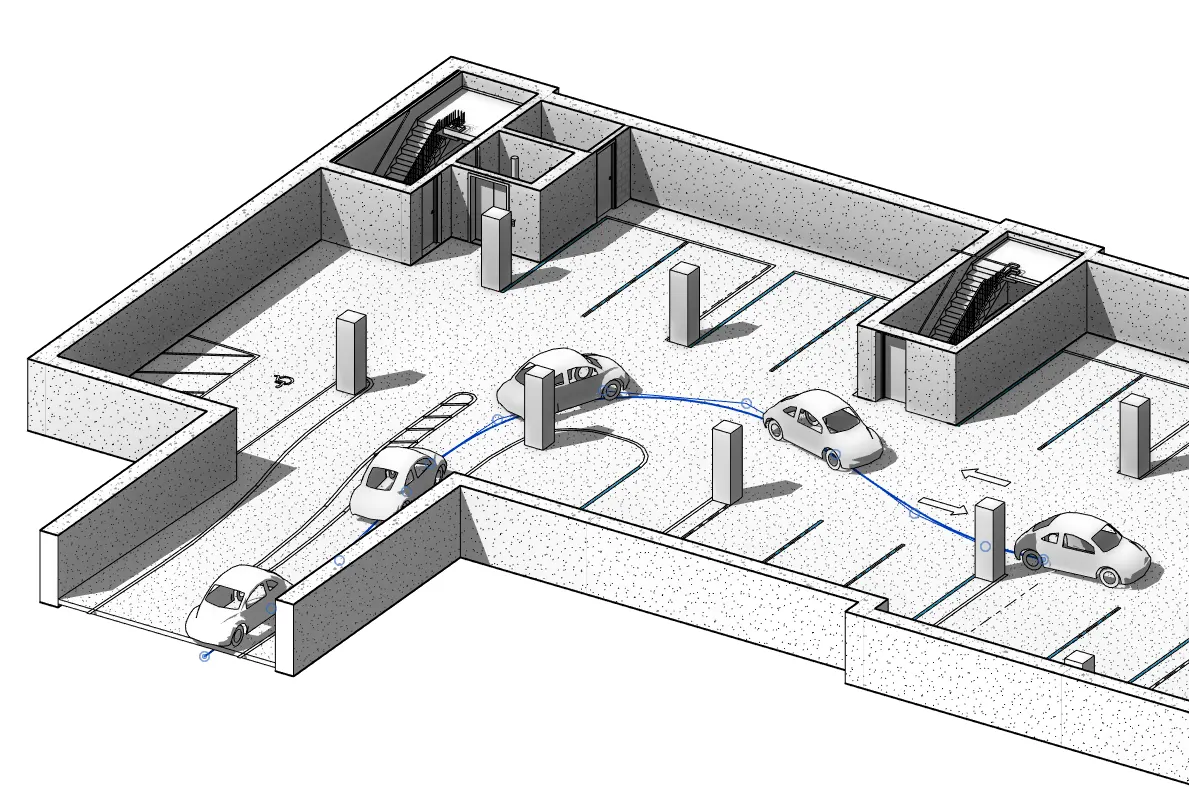

[ Screenshot: Elements arrayed along a curved path ]
3
True 3D Arrays.
Unlike native tools that restrict you to work planes, array your elements dynamically in three-dimensional space.

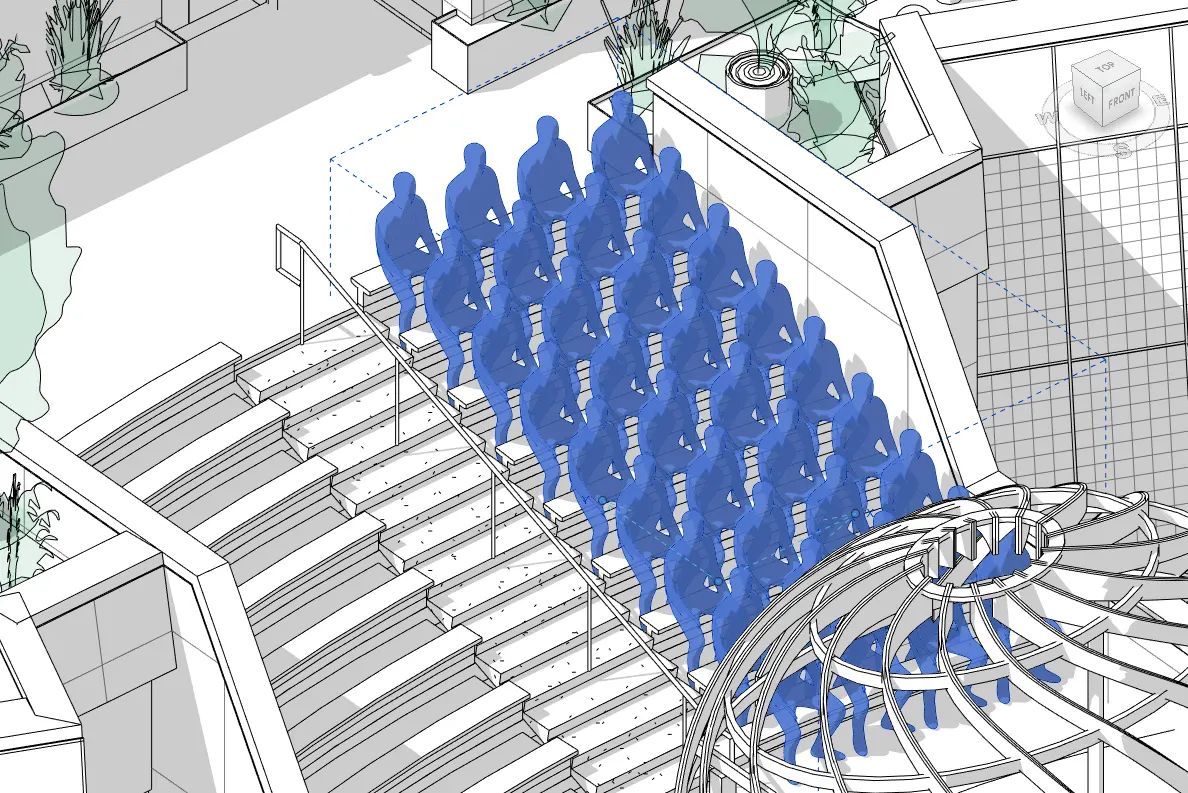

[ Screenshot: Complex 3D array of architectural components ]
Ready to build functional arrays?
Add Smart Array to your Revit toolset today.
